Horizontal Directional Drill – Malton

Project Overview

Trenchless Solutions Limited was contracted to install a new section of pipeline using trenchless techniques at Musley Bank as part of Phase 2 of the works. The project required a high level of installation accuracy to accommodate the pipeline beneath challenging ground conditions and within a constrained working area.

The site presented a number of challenges, including restricted access, proximity to existing services, and environmental considerations, making open-cut excavation unviable. A trenchless approach using Horizontal Directional Drilling (HDD) was selected to minimise disruption and ensure precise alignment.

---

Description of Works

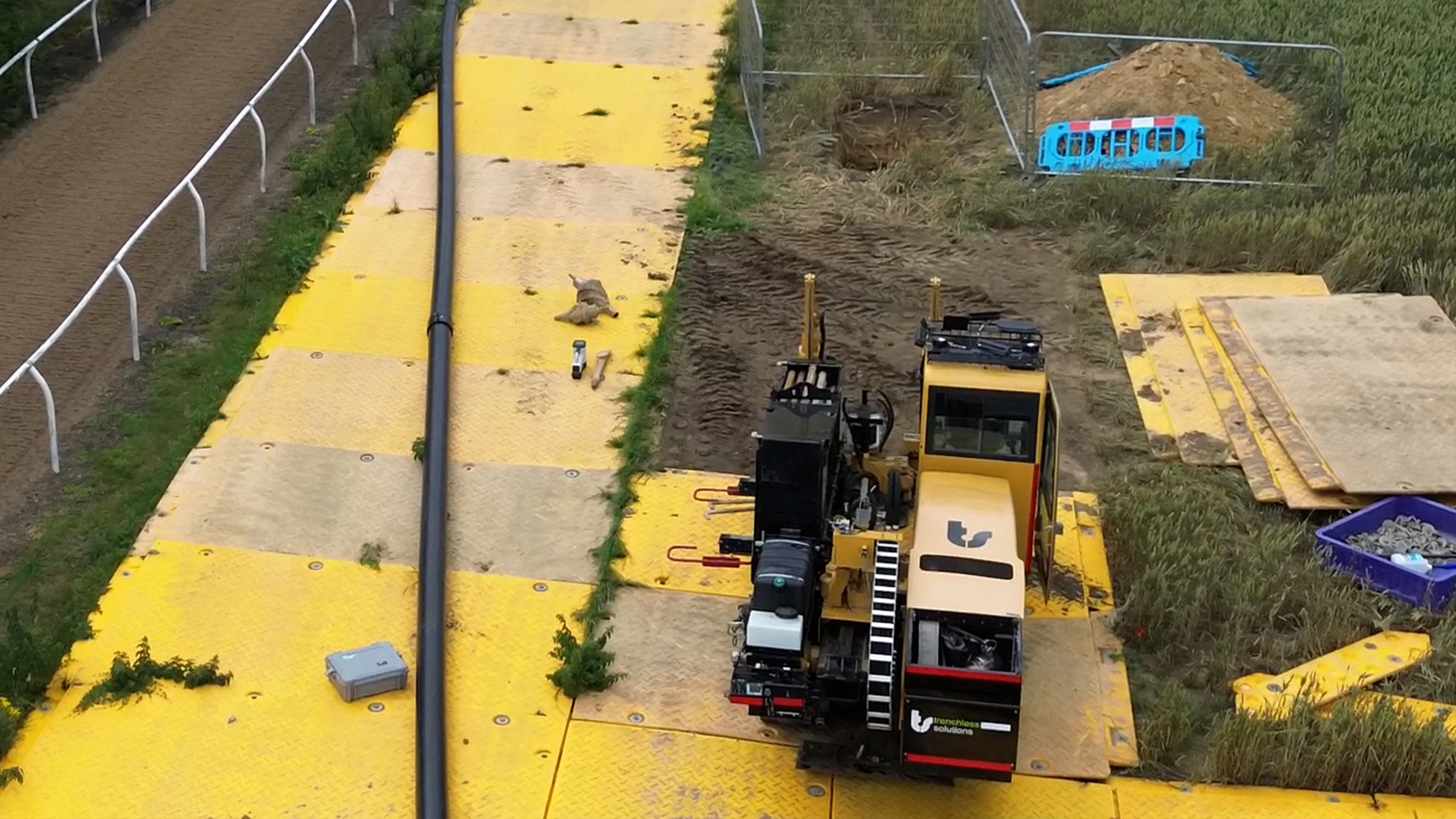

Working on behalf of the client, Trenchless Solutions Limited completed the installation using a controlled Horizontal Directional Drilling operation.

The works involved the completion of a pilot bore, followed by progressive reaming to achieve the required diameter, and the installation of the product pipe via pullback along the designed alignment.

All works were carried out within a confined working area, ensuring accuracy of line and level while maintaining minimal disruption to the surrounding environment.



Proposed open cut construction	As built trenchless construction
Restricted access: Surface disruption across the working area Traffic management constraints Close proximity to existing utilities	Restricted access: No disruption to surface or surrounding infrastructure Minimal working footprint
Health & safety: Temporary deep trenches Extensive temporary works Increased risk to operatives and public	Health & safety: No open excavation along the installation route Confined works within controlled entry and exit points
Cost savings: High reinstatement costs Extended construction duration Increased plant and labour requirements	Cost savings: Minimal reinstatement Reduced construction programme Lower overall project costs
Environmental: Higher carbon emissions Noise and vibration affecting surrounding area Increased surface disruption	Environmental: Reduced CO2 emissions Lower noise and surface disruption
