About Guided Auger Boring

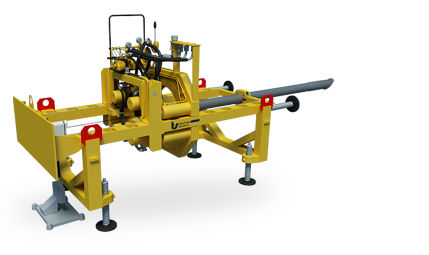

Trenchless Solutions operate a wide range of Guided Auger Boring systems, pipe sizes range from 90mmØ up to 1016mmØ, with jacking forces from 10t to 150t working from 2.0m long pits or 2.1m standard round shafts. These optically guided systems are the ideal No-Dig solution for installing new gravity pipelines or purely where accuracy is critical.

A variety of pipe materials can be installed i.e. Naylor Denlok Jacking pipe, steel casings, PE and Hobas GRP Jacking pipe in a wide range of ground conditions where minimal settlement is crucial up to distances of 100m, under waterways, roads, railways, existing structures, congested areas and environmentally sensitive areas.

The Method

Prior to pipe installation, a pilot bore is driven to line/level and all aspects of this method fully support the ground during installation, the cut spoil is conveyed by continuous flight auger back to the work pit.

• Accurate to +/- 25mm over a 50 metre bore length.
• Using these compact machines there is no slurry created.
• DN150 to DN725mm Naylor Denlok Vitrified Clay can be installed.
• The process is quick and efficient meaning overall costs are kept to a minimum.
• Only a small footprint for the working area is required.
• The ground is fully supported during installation.
